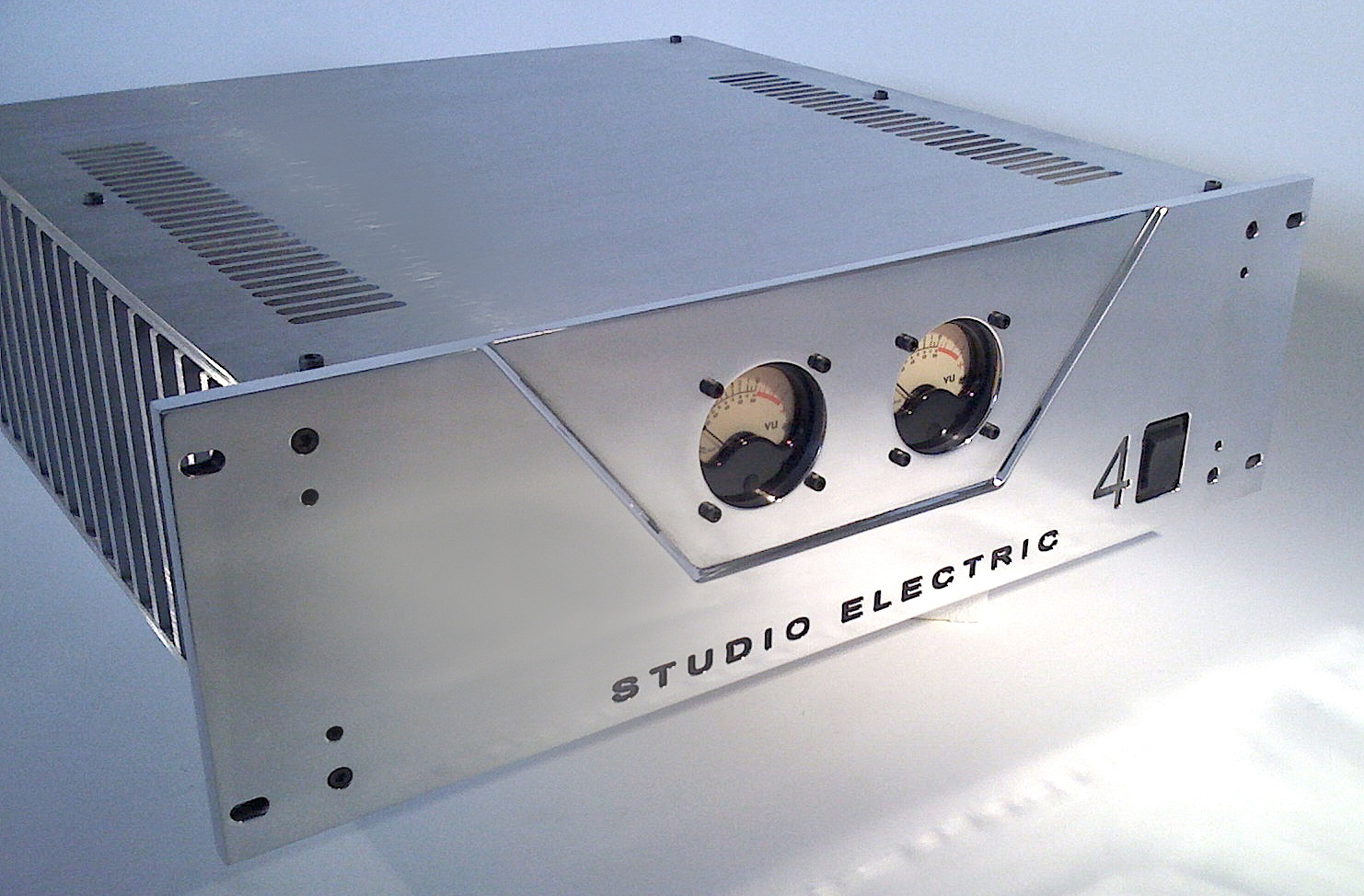

THE STUDIO ELECTRIC AMPLIFIER EA4

ID

Originally designed for critical listening in a mastering studio, the EA4 hybrid amplifier features NOS E88CC tubes in the first gain stage, driving premium English MOSFET power transistors, for truly impressive output (405 watts/ch RMS). Highly articulate, but at the same time warm and remarkably musical. The EA4 can restore the emotional connection that other large solid-state amplifiers have sacrificed in the quest for sheer power.







Specifications:*

Dual Mono Hybrid Amplifier

Tube Input / MOSFET power

Three Discrete Power Supplies
8 ohm - 275 wpc
4 ohm - 405 wpc
THD < .07
Input Sensitivity: 1v
Hum and Noise - 90dB

Damping Factor > 300

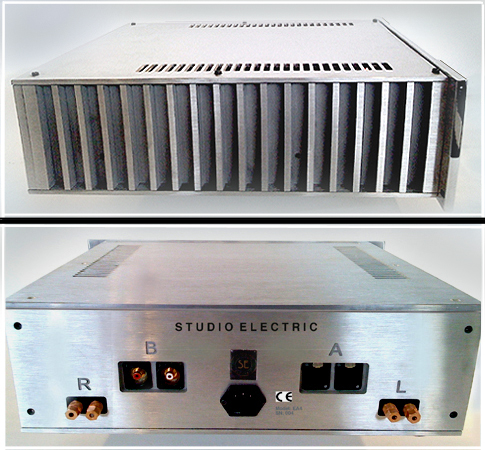

Features: All aluminum chassis | Solid copper binding posts | Gold plated RCA & XLR inputs | 12 gauge power cable

Shipping Weight: 85 lbs.

*Specifications subject to change



Price: Starting at $7350 - Options include VU meters, individual stepped attenuators and multiple inputs.



STUDIO ELECTRIC can custom fabricate unique chassis designs, built around our exceptional TUBE / MOSFET amplifier. Contact us for a quote on your "built to order" home amplifier, using studio grade components and artisan craftsmanship.
