STUDIO ELECTRIC TYPE FOUR Ultimate In-wall™
The
T4 features our proprietary broadband sphere in a unique in-wall loudspeaker.
Both the broadband driver and the dome tweeter can be adjusted for "toe-in".
This unique approach allows precise adjustments for image and sound
stage, not
usually available in an in-wall speaker. This feature also can limit
refection off side-walls. Further acoustic
control comes with an optional DSP low frequency room

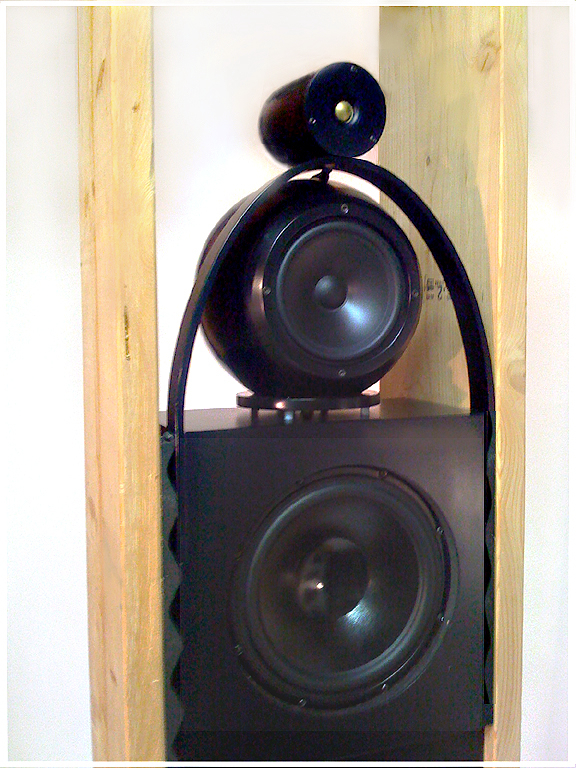

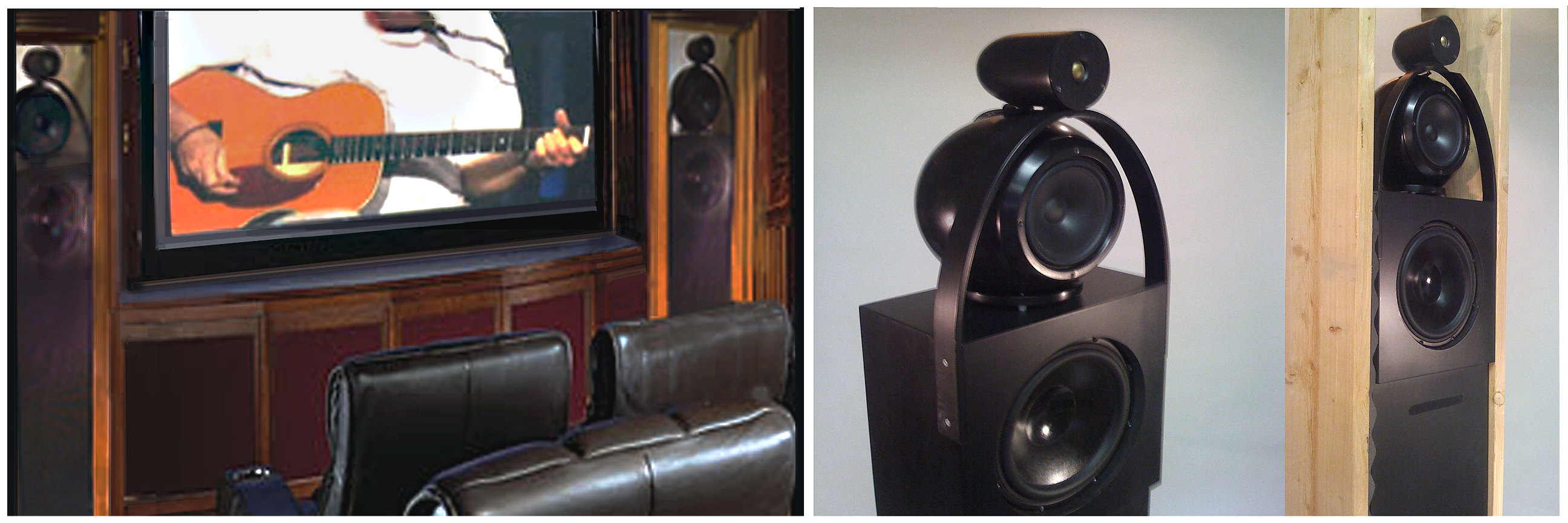

tuning unit. T4 is designed to fit between 16" on-center 2x10 or
2x12 stud walls in custom theater build-outs. Standard configuration
is 3-way passive. Biamping is also available and is required when using
the optional DSP low frequency control system.
Custom grills and on-site room tuning is available. Consult our shop for details. This speaker is based on the acoustical and electrical elements of our TYPE THREE with a slightly larger sub woofer. The heart and soul of the design is our unique 6.5 inch broadband drive unit (encased in a steel sphere) handling frequencies from 50 Hz to 3.8Kz. A 10" sub woofer adds deep bass in the lowest octave. A hand selected silk dome tweeter provides extension into the upper harmonics. Read more about the significant acoustical advantages of spherical enclosures over conventional speaker boxes. |
||||
 |
|
|||
HeightHeight - 60" | Weight- 74 lbs Yes...we
still build the original T1 and T2 "Sphere and Trylon"
Read more about: Type One & Type Two
|
||||||
|
SPECIFICATIONS: TYPE FOUR |
|
|||||
|
LF: 10 inch treated paper |
||||||
| MF: 6.5 inch copolymer | ||||||
| HF: .75 inch silk dome | ||||||
|
Response: |
||||||
|
Impedance: 4 ohms |
||||||
| Sensitivity: 87db | ||||||
|
Crossover: ( passive 3-way version) PC mounted, asymmetrical design,using custom inductors/ Solen and Kimber capacitors / non inductive resistors. Optional: Electronic low pass for sub woofer with DSP low frequency room tuning. ( Biamping required)
|
||||||
| Recommended Amplifier Power: | ||||||
| 75 to 250 watts | ||||||
| 185W max long term | ||||||
| 450W peak | ||||||
|
The price for the ultimate in-wall: $6500 -$11,500 per pair, depending on configuration. Consult our shop with your specific needs. |
||||||
|
|
|
|
|
||
|
